• Development of the main technological solutions.
• Formulation of the construction assignment for the underground part of the testing center: foundation, reinforced concrete pool 10 meters deep, dry channels for technological pipelines.
• Formulation of the construction assignment for internal premises and electrical networks.
• Development of a complete set of design documentation for custom products and elements of the technological pipeline, as well as project (with passing expertise in the Transneft system) and working documentation.

• Main equipment: recirculating water pool (V=2615m³), stationary booster pumps (2 units * 4 MW; 1 unit * 400 kW), pipeline system.

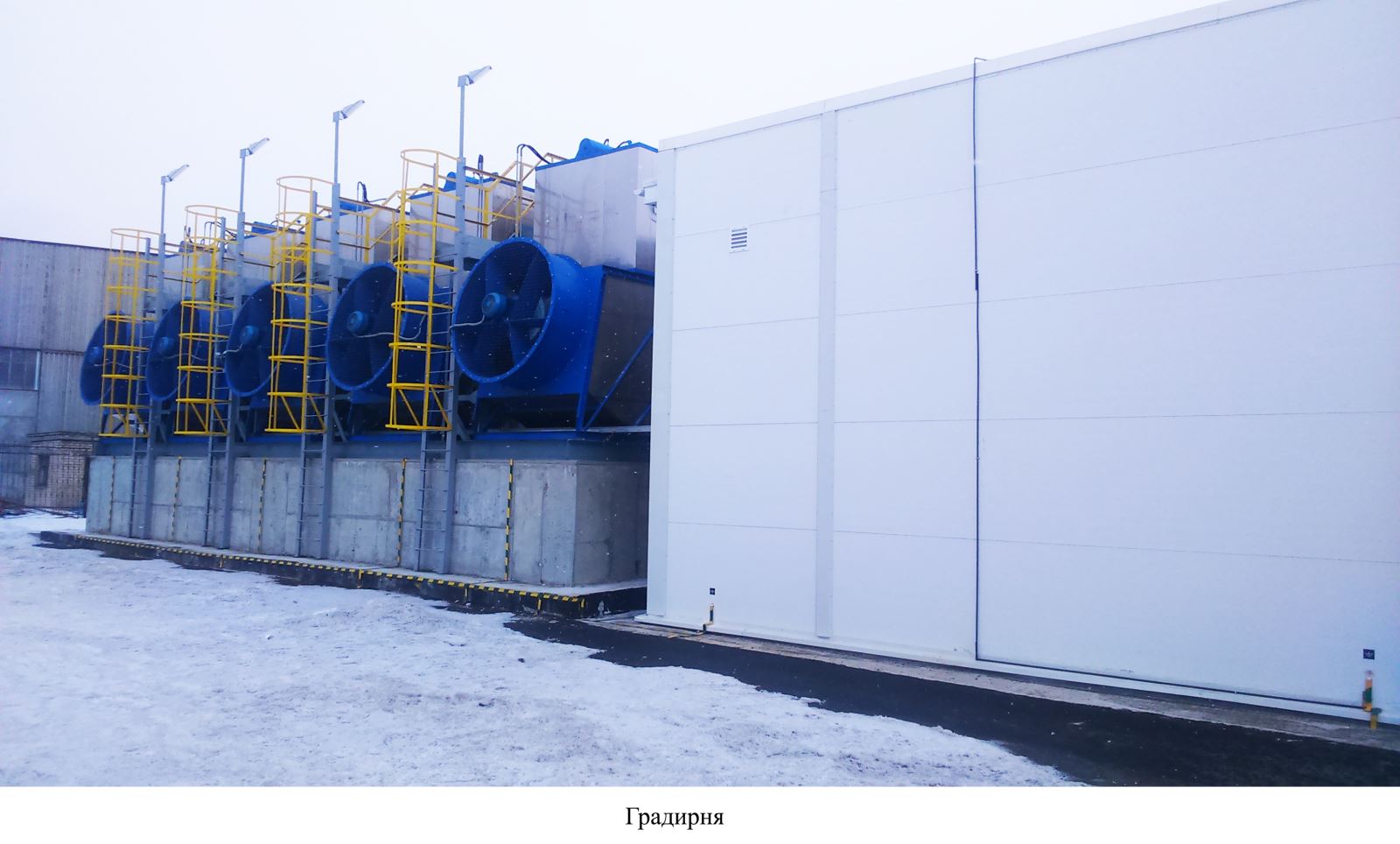

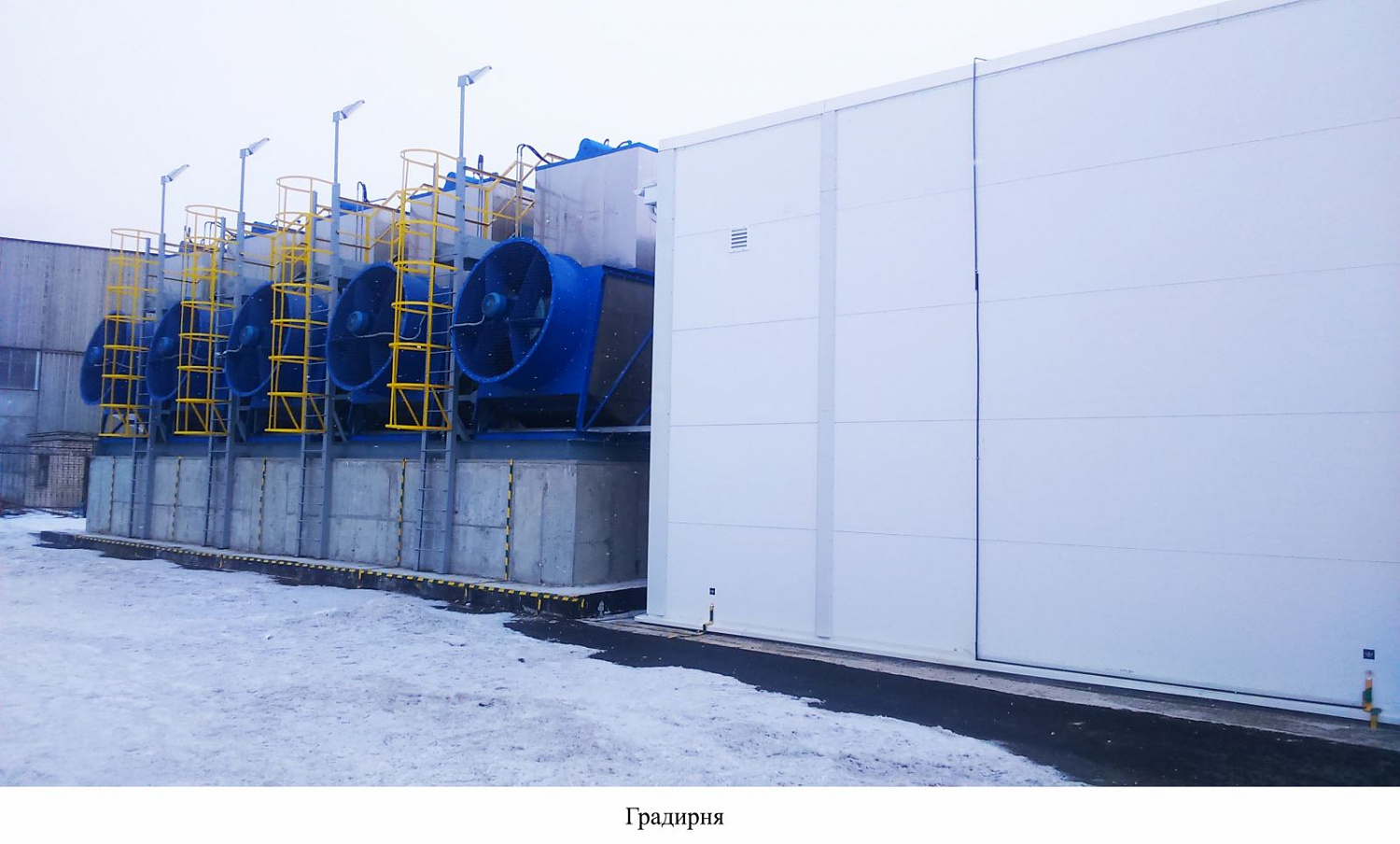

• Auxiliary equipment: water filtration system, sluice system, cooling tower (up to 15 MW), air cooling system (up to 1.5 MW), drainage system.
• Technological equipment: hydrostatic testing stand, pipe washing station, device for assembling and disassembling pump rotors.

For controlling and managing the equipment of the testing center, an automated control system with a set of instrumentation and control devices was developed and implemented, allowing for testing with the highest class of measurement accuracy in various modes while ensuring safety in accordance with the requirements of JSC "Transneft."

• The automated process control system (APCS) is based on a Siemens S7-417 controller.
• Number of analog and discrete signals: 2200 units.
• Number of automation cabinets: 14 units.

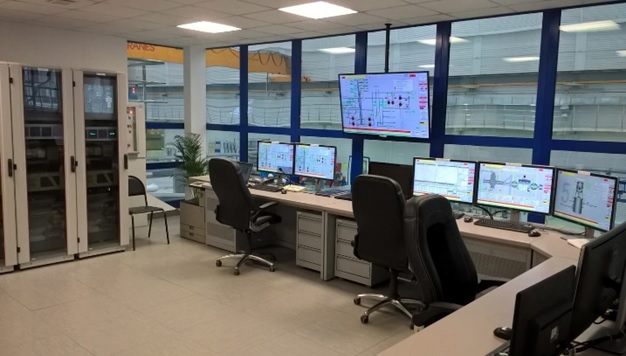

• Central control room (6 operator workstations).
• Instrumentation and control devices (flow meters DN100-DN1000, pressure sensors, temperature, power, frequency, vibration, noise sensors, etc.).

The APCS specialists developed and implemented proprietary software.

• Switchgear (25 MW, 48 cells).
• Transformer substation 10/6 kV (16 MVA 2 units).
• Transformer substation 10/0.4 kV (1 MVA 2 units).
• Frequency converters (8 MW 2 units, 4 MW 2 units, 2.5 MW).
• Soft starters (8 MW 2 units).
• Busbar measuring sections (39 cells).
• Number of electric drives: 53.

• Installation of supplied equipment and materials: technological pipelines – over 250 tons; technological equipment – over 800 tons.
