Test complexes

The stand is designed for conducting the following tests on hydraulic cylinders:

• idle operation
• external tightness on fixed connections
• internal leakage in extreme piston positions
• breakaway pressure
• idle pressure

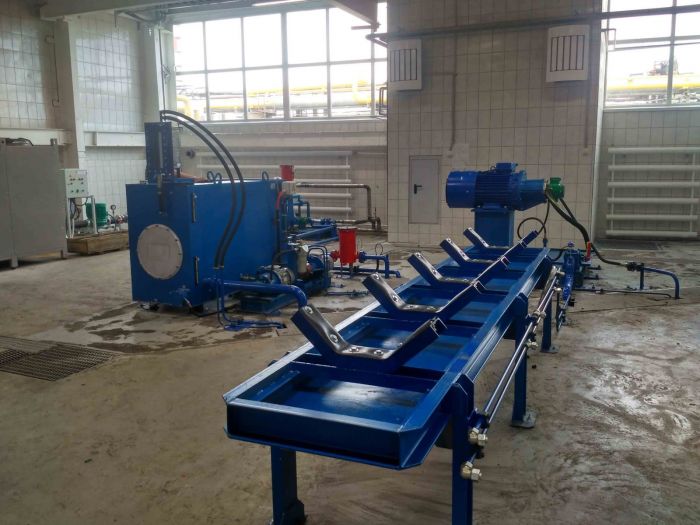

The stand is equipped with equipment for disassembly and assembly of hydraulic cylinders.

Delivery set includes:

• stand pump station
• frame for mounting the tested hydraulic cylinders with a movable trolley
• hydraulic cylinder assembly/disassembly press
• oil pump for draining the stand's sump with a filtration system
• power electrical equipment
• stand control panel

The stand's pump station protection system provides:

• protection of the equipment from overheating
• shutdown of the stand when the oil level in the tank falls below the allowable limit
• blockage of pump start and operation when suction valves are closed

The stand is intended for operation at JSC "Magnitogorsk Service Center," Magnitogorsk.
