The test bench is designed to conduct acceptance tests of discrete and proportional hydraulic equipment in accordance with GOST 20245-74 (Hydraulic equipment. Acceptance rules and test methods) and GOST 28971-91 (Hydraulic drive. Servomotors. Test methods).
The stand allows testing devices of various types:
- by installation type: butt and pipe type
- by control type: discrete, proportional, and servo control
- by the design of the control part: with built-in and external electronics

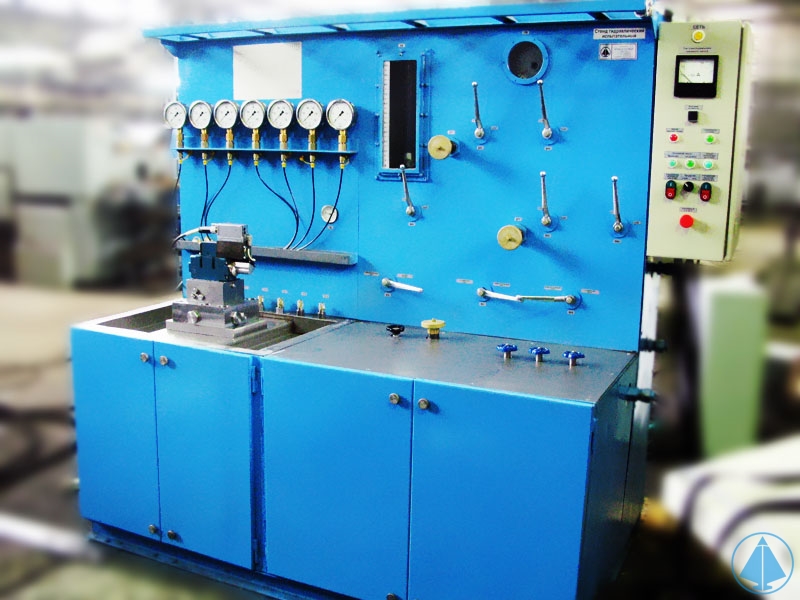

The stand for testing hydraulic equipment consists of the following main elements:
- test bench with a mounting plate, measuring and regulating instruments
- pump station
- heat exchanger
- control cabinet for the pump station (electrical power)
- control panel for the pump station
- control panel for the test bench
- computer with software
- connecting electrical cables and hydraulic hoses
- set of adapter plates for butt-mounted hydraulic equipment
DESCRIPTION OF ELECTRICAL EQUIPMENT AND SOFTWARE OF THE TEST BENCH
The purpose of the software when working with the electrical equipment of the test bench:
- processing signals from sensors on the bench and the pump station
- visualizing measurement results on the monitor screen
- controlling the electrical equipment of the stand and the pump station (relay, light indication) according to the algorithm
- controlling the process of testing hydraulic devices (setting control signals)
- displaying documentation on the monitor regarding hydraulic equipment testing (connection diagrams)
- archiving data during testing on the bench
The pump station control algorithm allows:
- monitoring pump station parameters (oil level, temperature, etc.)
- monitoring the condition of the electrical part (main pump drive)
- issuing a signal for work permission or emergency shutdown of the pump station with appropriate light indication
Parameters checked during tests on the bench for discrete equipment:
- functioning
- internal and external tightness
- pressure adjustment dependency on flow rate
- smooth regulation and adjustment range
- change in reduced pressure when changing inlet pressure and flow rate
- fluid flow through the control valve
- flow dependency on the pressure difference at the inlet and outlet
Parameters checked during tests on the bench for proportional equipment:
- functioning
- internal and external tightness
- pressure gain factor
- zero offset
- flow gain factor
- hysteresis and polarity
BRIEF LIST OF HYDRAULIC DEVICES THAT CAN BE TESTED ON THE BENCH
|
Device Name
|
Model
|
Manufacturer
|
|
1. Discrete Distributors:
|
||
|
Hydraulic distributor
|
4WE6J6X/EG24N9K4B06
|
Rexroth
|
|
Hydraulic distributor
|
4WEH16J7X/6EG24N9S2K4
|
Rexroth
|
|
Hydraulic distributor
|
VE 6.44.31/
|
"Hydroapparat"
|
|
2. Proportional Distributors and Servo Valves:
|
||
|
Servo distributor
|
4WSE3EE16-1X/300B8-315K9EVSO3
|
|
|
Proportional Distributor
|
4WRDE16V125L-5x/6L15Z9/M-280
|
Rexroth
|
|
Proportional Reduction Valve
|
3DRЕ16P6X/200YG24K6VE1-3
|
(missing manufacturer)
|
|
3. Pressure Control Devices:
|
||
|
Direct Acting Relief Valve
|
DBDS20K1X/315
|
Rexroth
|
Reduction Valve
|
DR30-5-5X\200Y
|
Rexroth
|
|
Pump Protection Block
|
DBAW16BF2-2X315EG24N9K4A08
|
Rexroth
|
|
Protection Shut-Off Block
|
SAF10M12T210A-S13
|
HYDAC
|
|
Brake Valve
|
FD16PA2X/B03V
|
Rexroth
|
|
Brake Release Valve
|
SB17G12
|
HAWE
|
|
Relief Valve
|
MKPV-32/3S3V
|
"GSKTB GA"
|
|
Reduction Valve
|
MKRV-32/3S2R
|
Hydrodrive Plant
|
|
4. Check Valves, Hydraulic Locks, and Throttles:
|
||
|
Hydraulic Lock
|
SL52PA1-1x/
|
Rexroth
|
|
Modular Throttle Plate
|
Z2FS10-5-3 X\V
|
Rexroth
|
|
Embedded Check Valve
|
M-SR30KE05-1x/
|
Rexroth
|
|
Throttle
|
MG30G1X\V
|
Rexroth
|
|
Check Valve
|
1MKO 32/32
|
JSC "Hydraulic"
|
|
5. Control and Measuring Instruments:
|
||
|
Pressure Relay
|
HED3OA3X/200Z6L24
|
Rexroth
|
|
Pressure Transmitter
|
P20V-200bar
|
RPM
|
|
Pressure Relay
|
EDS1691-P-C-200-000
|
HYDAC
|
