The stand is designed for conducting the following tests on hydraulic cylinders:
- idle operation
- external tightness on fixed connections
- internal leakage in extreme piston positions
- breakaway pressure
- idle pressure
The stand is equipped with equipment for disassembly and assembly of hydraulic cylinders.
Delivery set includes:

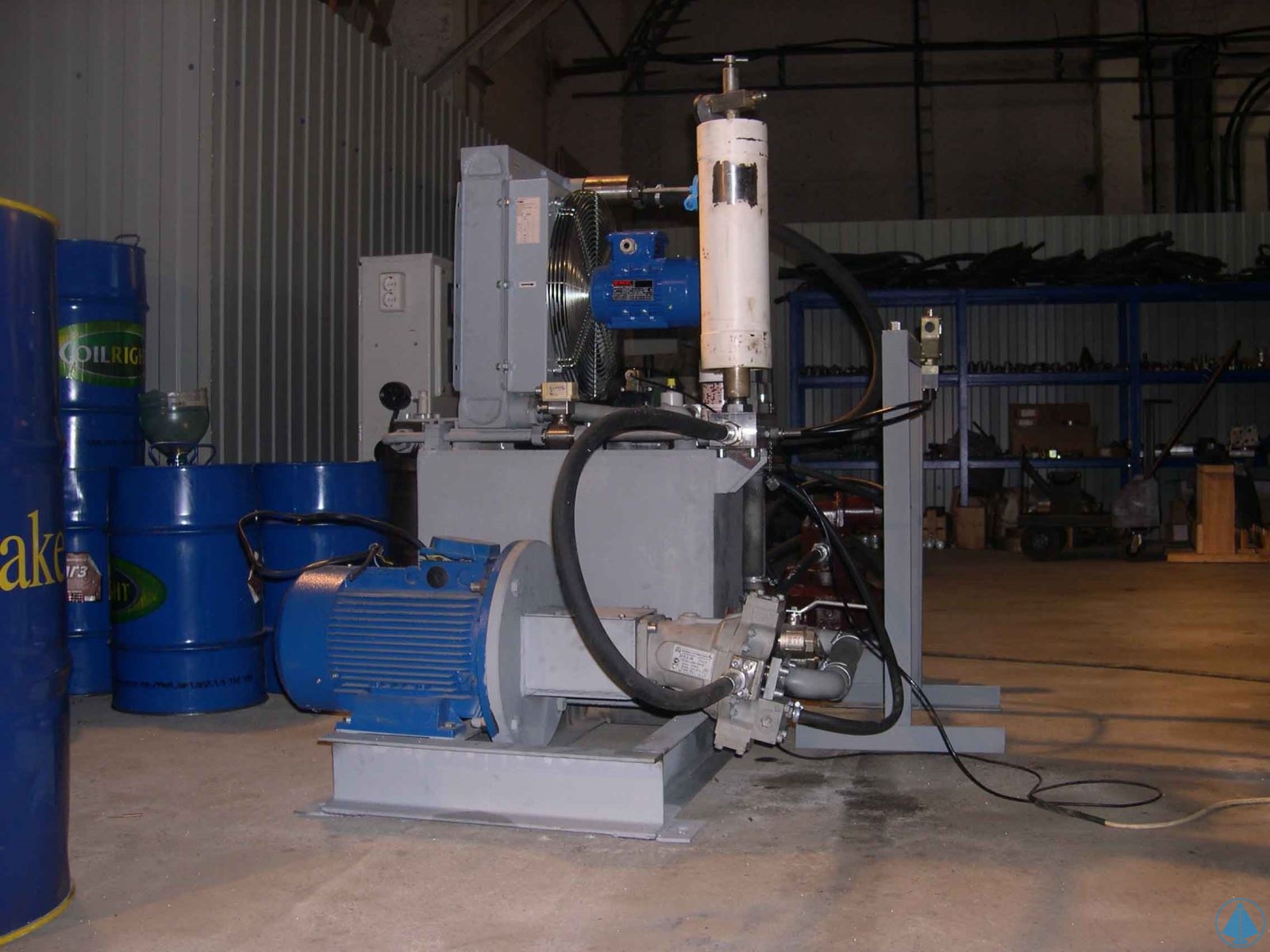

- stand pump station

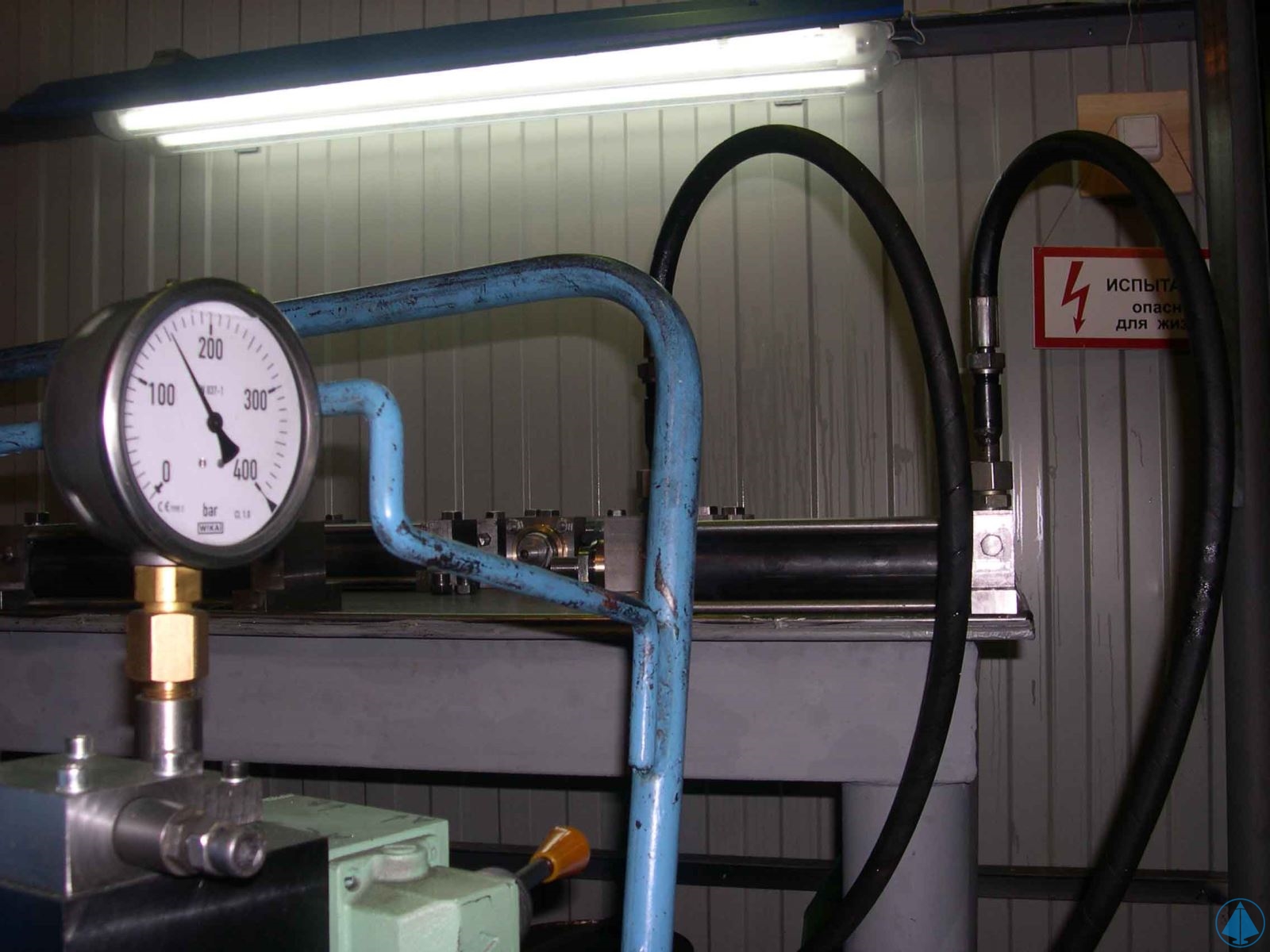

- frame for mounting the tested hydraulic cylinders with a movable trolley
- hydraulic cylinder assembly/disassembly press
- oil pump for draining the stand's sump with a filtration system
- power electrical equipment
- stand control panel
The stand's pump station protection system provides:
- protection of the equipment from overheating
- shutdown of the stand when the oil level in the tank falls below the allowable limit
- blockage of pump start and operation when suction valves are closed
The stand is intended for operation at JSC "Magnitogorsk Service Center," Magnitogorsk.
The test bench is equipped with tools for disassembling and assembling hydraulic cylinders.
Delivery set:
- test bench pump station
- frame for mounting test hydraulic cylinders with a movable cart
- press for assembling and disassembling hydraulic cylinders
- oil evacuation pump from the bench sump with a filtration system
- electrical power equipment
- control panel for the test bench
The pump station protection system provides:
- protection against equipment overheating
- shutdown of the bench when the oil level in the tank falls below the permissible limit
- blocking the start and operation of pumps when the intake valves are closed
The test bench is intended for operation by JSC "Magnitogorsk Service Center", Magnitogorsk.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum length of hydraulic cylinders (with extended rod) tested on the bench, mm | 15000 |
| Maximum test pressure, MPa | 32 |
| Nominal pressure, MPa | 20 |
| Maximum hold time under pressure of 32 MPa, min | 3 |
| Maximum pump capacity, L/min | 40 |
| Operating mode | continuous |
| Nominal filtration accuracy, μm | 10 |
| Maximum pressure in the press hydraulic system for assembling/disassembling hydraulic cylinders, MPa | 10 |
| Maximum pump capacity of the press for assembling/disassembling hydraulic cylinders, L/min | 40 |
| Press force for assembling/disassembling hydraulic cylinders, tons |
forward stroke: 9 reverse stroke: 5.5 |
| Maximum power consumption, kW | 16 |
| Bench dimensions (WxLxH), mm | 1000x1500x700 |
